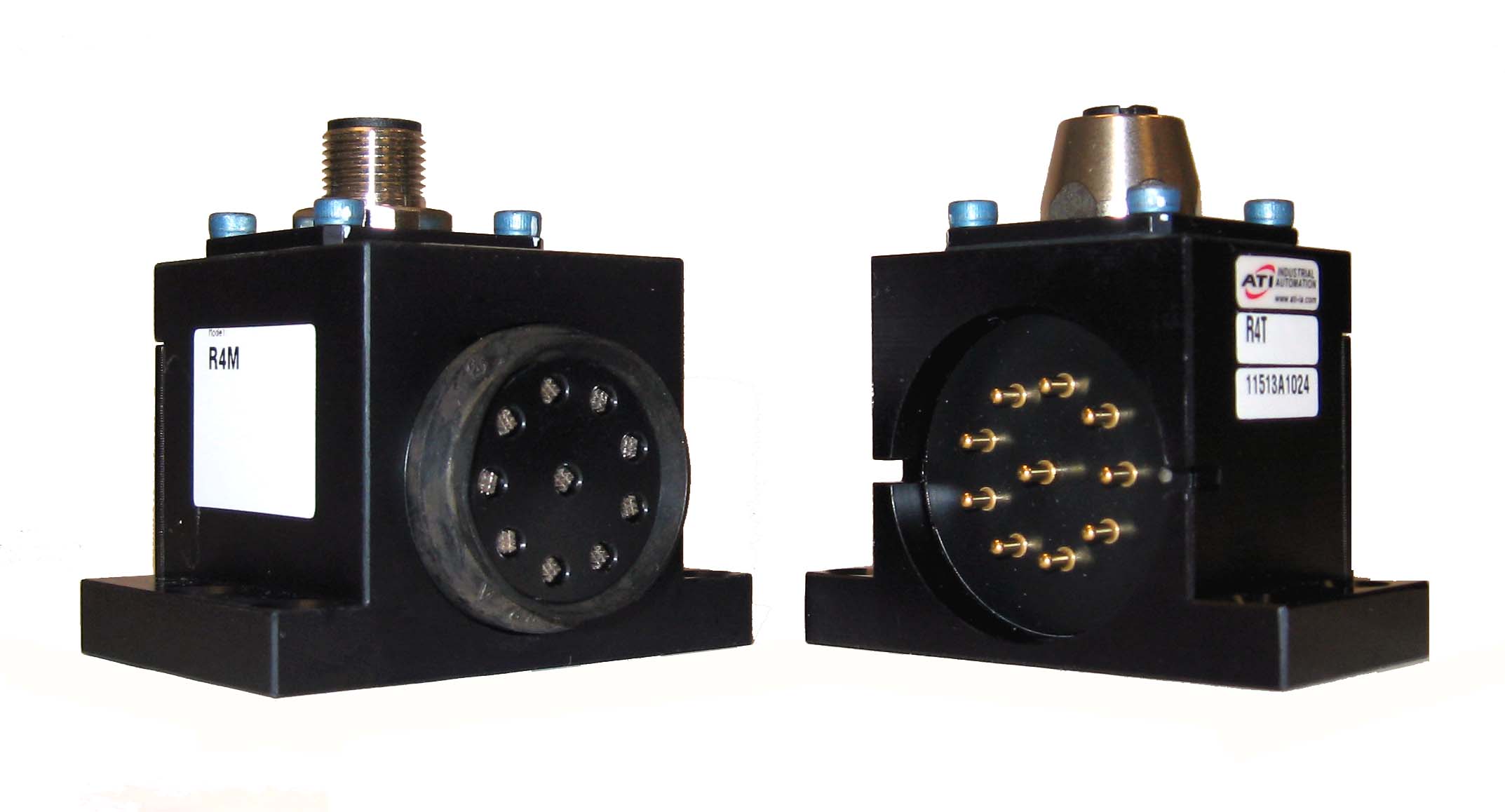

| 9120-R4-M | M | 4 Amp/250VAC Electrical Module with 4-pin Eurofast connector - Master side |
| 9120-R4-T | T | 4 Amp/250VAC Electrical Module with 4-pin Eurofast connector - Tool side |
|
|
|
4 Amp/250VAC Electrical Module with 4-pin Eurofast connector |
|
|
Master 0.45 lbs (0.20 kg)
Tool 0.30 lbs (0.14 kg) |
|
|
- Aluminum housing
- Precious metal-plated heads on spring pins
- Precious metal-plated contact pins
- Nitrile seal.
|
|
|
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
|
|
|
|
|
Tool
|
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
There are no Cables associated with this module.
|
|
| 9630-20-R4.pdf |
R4 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-R4-M |
4A/250VAC electrical module with 4-pin Euro connector - Master side
|
| 9120-R4-T |
4A/250VAC electrical module with 4-pin Euro connector - Tool side
|
|
|
