| 9120-X7B-M | M | Coax Cable Module, Single Contact, BNC Connector - Master side |
| 9120-X7B-T | T | Coax Cable Module, Single Contact, BNC Connector - Tool side |
|
|
|

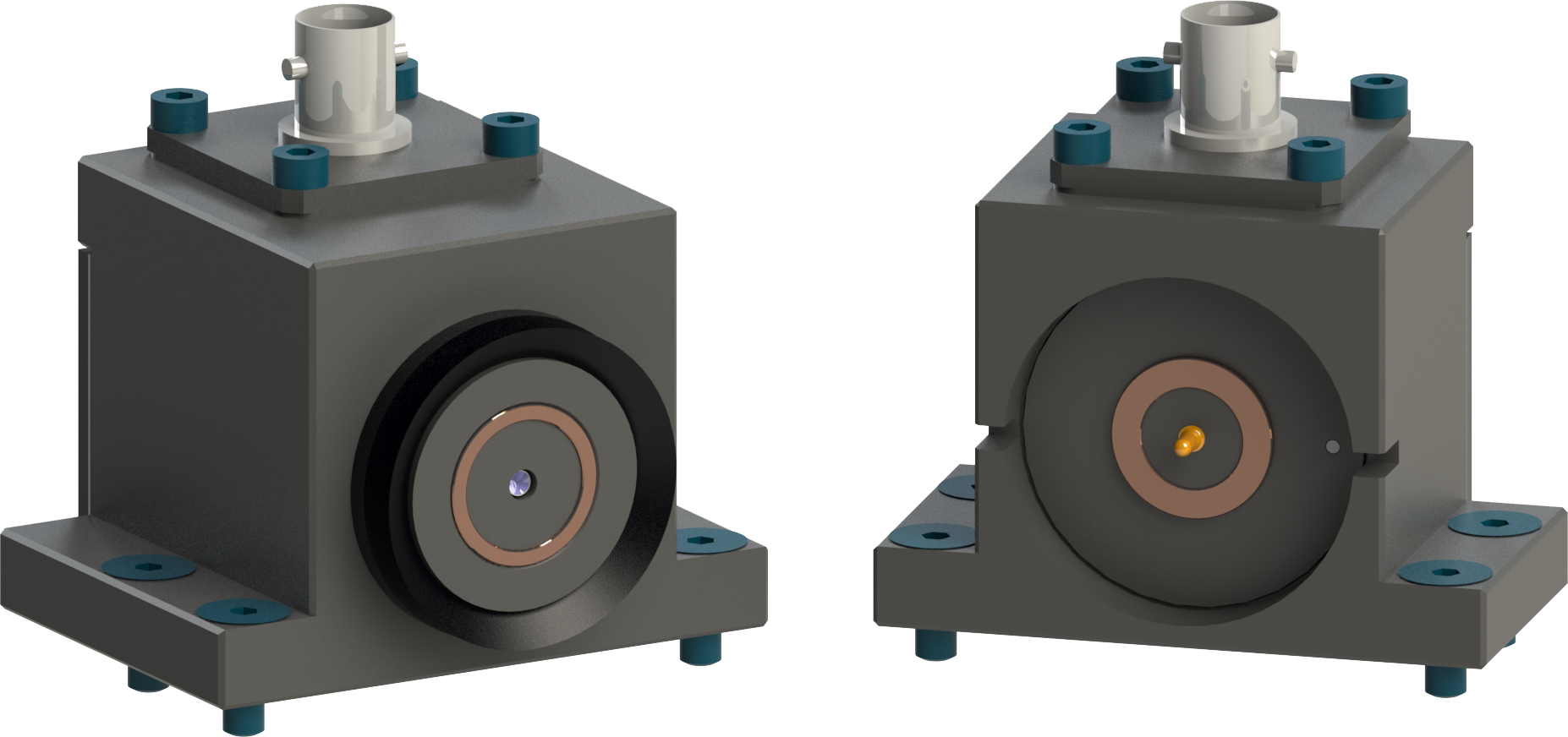

Coax cable module, single contact, BNC connector |
|
|
9120-X7B-M 0.35lbs(0.160kg)
9120-X7B-T 0.27 lbs (0.12 kg) |
|
|
- Precious-metal-plated spring and contact pins
- Aluminum housings
- Teflon® dielectric
- Nitrile seals.
|
|
|
4A / 500V
1GHz max frequency
50 Ohm |
|
|
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
|
|
There are no Cables associated with this module.
|
Industry standard cables.
|
| 9630-20-X7B.pdf |
Coax Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-X7B-T |
COAX cable module with single 75 Ohm Contact and BNC Connector - tool side
|
| 9120-X7B-M |
COAX cable module with single 75 Ohm Contact and BNC Connector - master side
|
|
|
