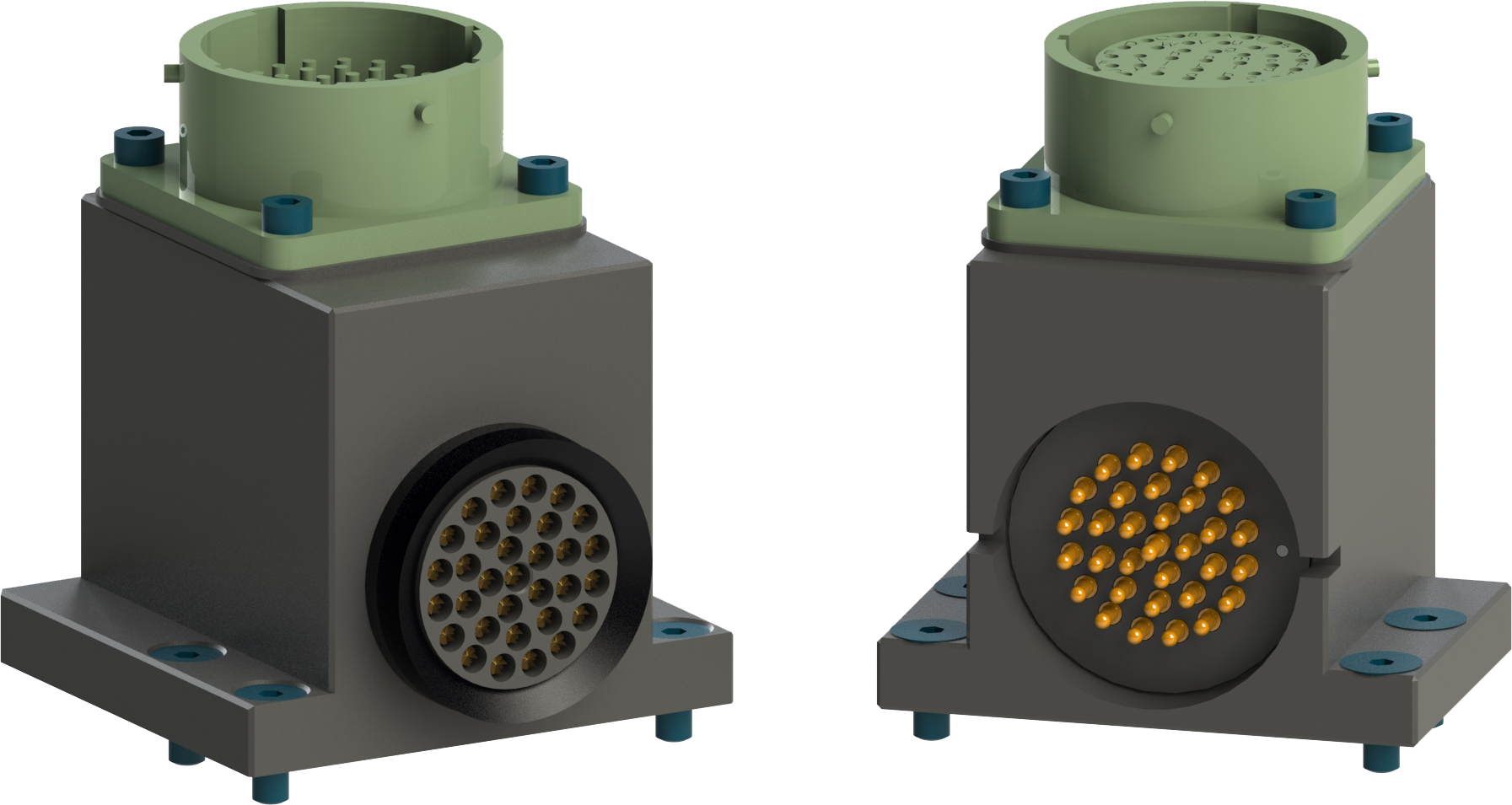

| 9120-R32A-M | M | Electrical module with Male 36-Pin MS Quick Disconnect Connector. Pass-through of Pins A - J. Pins A - F and Pin J rated to 5 Amp/250V, Pins G - H rated to 3 Amp/250V - Master side |
| 9120-R32-M | M | 32-pin, 3 Amp/250VAC electrical module with 36-pin MS quick-disconnect connector - Master side |
| 9120-R32R-M | M | 32-pin, 3 Amp/250VAC, MS miniature MS quick-disconnect connector, hardwired prox cables with right angle connector. Master side |
| 9120-R32W-M | M | 32-pin, 3 Amp/250VAC, MS miniature MS quick-disconnect connector with hard-wired prox sensor - Master side |
| 9120-R32A-T | T | Electrical module with Male 36-Pin MS Quick Disconnect Connector. Pass-through of Pins A - J. Pins A - F and Pin J rated to 5 Amp/250V, Pins G - H rated to 3 Amp/250V - Tool side |
| 9120-R32-T | T | 32-pin, 3 Amp/250VAC electrical module with 36-pin MS quick-disconnect connector - Tool side |
|
|
|
32-pin, 3 Amp/250VAC with 36-pin MS quick-disconnect connector |
|
|
Master 0.72 lbs (0.33 kg)
Tool 0.55 lbs (0.25 kg)
9120-R32R-M 0.64 lbs(0.290kg)
9120-R32W-M 0.65 lbs (0.29 kg) |
|
|
- Aluminum housing
- Rhodium-plated heads on spring pins
- Rhodium-plated contact pins
- Nitrile seal.
|
|
|
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
|
|
|
|
|
|
|
|
Master
|
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
There are no Cables associated with this module.
|
|
| 9630-20-R32.pdf |
R32 Module Drawing
|
| 9630-20-R32A.pdf |
R32A Module Drawing
|
| 9630-20-R32RM R32T.pdf |
R32R-M,R32-T Module Drawing
|
| 9630-20-R32W-M, R32-T.pdf |
R32W-M with R32-T Module Dimensional and Pinout Drawing
|
| 9630-20-R32ZC5PD.pdf |
R32ZC5PD Module Drawing
|
| 9630-20-R32ZC5PDM R32ZC6AT.pdf |
R32ZC5PDM R32ZC6AT Module Drawing
|
| 9630-20-R32ZC6A.pdf |
R32ZC6A Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-R32-T |
32-pin, 3A/250VAC with 36-pin MS quick-disconnect connector - Tool side
|
| 9120-R32R-M |
R32R-Master, Hardwired Prox Cables w/ Right Angle Connector (for QC-110 and QC-76 only)
|
| 9120-R32A-M |
R32A Master Module with Male 36-Pin MS Quick Disconnect Connector
|
| 9120-R32W-M |
R32W-M Master Module, Hardwired Prox Swiches
|
| 9120-R32A-T |
R32A Tool Module with Female 36-Pin MS Quick Disconnect Connector
|
| 9120-R32-M |
32-pin, 3A/250VAC with 36-pin MS quick-disconnect connector - Master side
|
|
|
| C5 | No connector, Pin Block pre-wired with leads. |
| C6 | No connector or wiring at all. |
| PD | Adds potting for improved moisture protection.
(Add PD at the end of the module number before -M or -T. No dashes between PD and module number.) |
| R | Adds right-angled connector for lock/unlock sensor cables to Master electrical modules.
(Add R at the end of the module number, before -M for Master. No dashes between R and module number.) |
| W | Adds straight lock/unlock sensor cables to Master electrical modules. This takes away the use of four pins from the customer. |
|
|
