| 9120-TP-M | M | PROFINET Pass-through Module with connectors for PROFINET and Aux Power, 5-Pin Aux Power - Master side | |
| 9120-TP-T | T | PROFINET Pass-through Module with connectors for PROFINET and Aux Power, 5-Pin Aux Power - Tool side | |
|
|
|

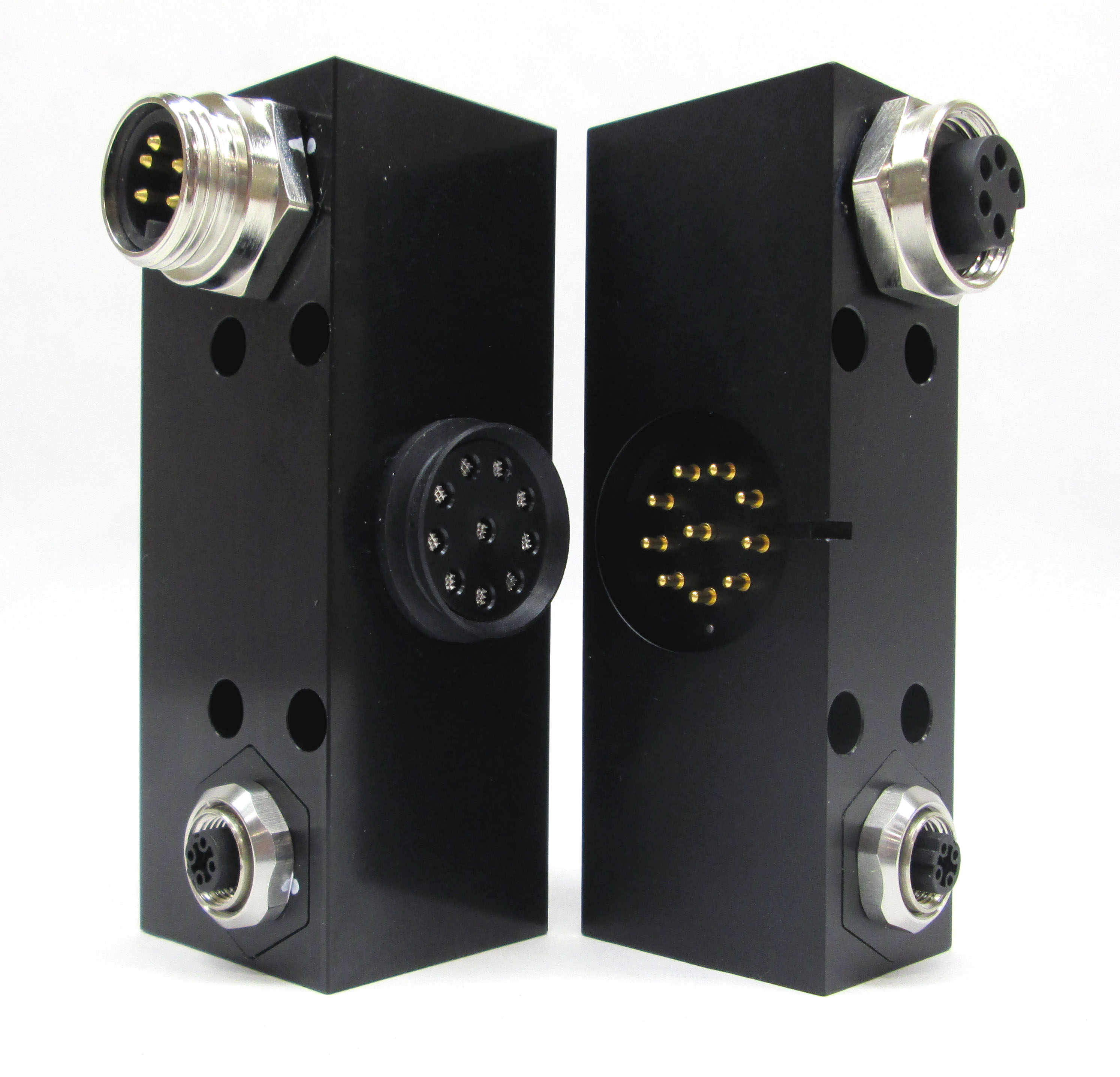

PROFINET Pass-through Module with connectors for PROFINET and Aux Power, 5-Pin Aux Power |
|
|
Master 1.11 lbs (0.50 kg)
Tool 0.84 lbs (0.38 kg) |
|
|
- Anodized aluminum housing
- Rhodium-plated spring and contact pins
- Nitrile seals.
|
|
|
PROFINET - 4
Auxiliary Power - 5 |
|
|
PROFINET Circuit - 2 Amp/60VAC max.
Auxiliary Power Circuit - 5 Amp/600VAC max. |
|
|
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-29
| |
|
|
Flat B
Apps Approval for Flats A, C (blocks ports) |
| No |
|
QC-46
| |
| No |
|
QC-50
| T |
|
|
Flats A, B, C, D
Modules will overhang each flat and block (1) M5 air port, and interferes with adjacent module flat. Use of JJ30 gives access to one more port. |
| Yes |
|
QC-76
| |
| No |
|
QC-110
| |
| No |
|
QC-160
| |
|
|
Flats A,B (On Flat B, Position 3, Port 5 is restricted). TE/TP modules cannot be mounted adjacent to other modules on same flat without special adapter. |
| No |
|
MC-36R
| |
| No |
|
Custom Application QC Models |
|
|
|
|
|
|
|
Master
|
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
|
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
There are no Cables associated with this module.
|
|
| 9630-20-TP.pdf |
TP PROFINET Pass-through Module Drawing
|
| 9630-20-TPM TPZC7T.pdf |
TP-M,TPZC7-T Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-TP-M |
PROFINET Pass Through Master module with connectors for PROFINET and Aux Power
|
| 9120-TP-T |
Profinet Pass Through Tool module with connectors for Profinet and Aux Power
|
|
|
| C7 | Module functionality is the same but with an alternate connector selection. |
|
|
