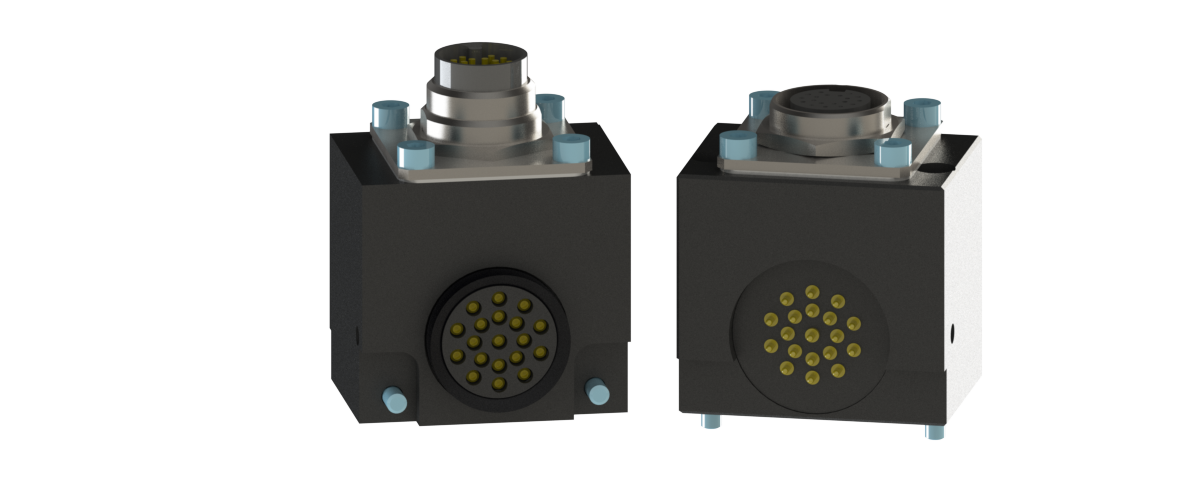

19-pin, 3 Amp/50VDC electrical module with M16-style connector |
|
|
KF19 Master - 0.24 lbs (0.11 kg)
KF19 Tool 0.25 lbs (0.11 kg)
9120-KF19P-M 0.28 lbs (0.12 kg)
|
|
|
- Anodized aluminum housing.
- Precious-metal-plated pins.
- Nitrile seal(s).
|
|
|
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
|
| 9630-20-KF19.pdf |
KF19 Module Drawing
|
| 9630-20-KF19M K14M8ACT.pdf |
KF19-M,K14M8AC-T Module Manual
|
| 9630-20-KF19M K14T.pdf |
KF19-M, K19-T Module Drawing
|
| 9630-20-KF19M KF14T.pdf |
KF19-M, KF14-T Module Drawing
|
| 9630-20-KF19PM KF19T.pdf |
KF19P-M,KF19-T Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-KF14-T |
19-pin (14 pins available for customer use), 3A/50V, M16 connector with 16 Tool-ID
|
| 9120-KF19-M |
19-Pin, 3 Amp/50VAC electrical module with M16-Style Connector, Master Side
|
| 9120-KF19PD-M |
19-Pin, 3 Amp/50VAC electrical module with M16-Style Connector, Master Side, Potted
|
| 9120-KF19-T |
19-Pin, 3 Amp/50VAC electrical module with M16-Style Connector, Tool Side
|
|
|
| P | Adds 8mm pico receptacles for lock/unlock sensor cables to Master electrical modules (QC20/21 only, not for Hollow-Wrist versions). This takes away the use of four pins from the customer.
(Add P at the end of the module number.) |
| PD | Adds potting for improved moisture protection.
(Add PD at the end of the module number before -M or -T. No dashes between PD and module number.) |
|
