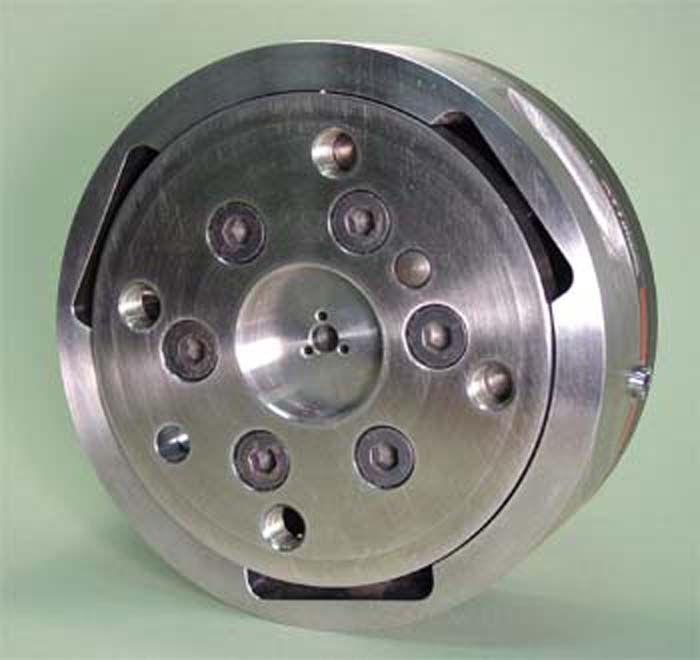

| US-200-1000 | 200 lbf | 500 lbf | 1000 lbf-in | 1000 lbf-in | 1/32 lbf | 1/16 lbf | 1/8 lbf-in | 1/8 lbf-in |
| US-300-1800 | 300 lbf | 875 lbf | 1800 lbf-in | 1800 lbf-in | 5/68 lbf | 5/34 lbf | 5/16 lbf-in | 5/16 lbf-in |
| US-600-3600 | 600 lbf | 1500 lbf | 3600 lbf-in | 3600 lbf-in | 1/8 lbf | 1/4 lbf | 1/2 lbf-in | 1/2 lbf-in |
| | SENSING RANGES | RESOLUTION |
| | | | | | | | |
| SI-1000-120 | 1000 N | 2500 N | 120 Nm | 120 Nm | 1/4 N | 1/4 N | 1/40 Nm | 1/80 Nm |
| SI-1500-240 | 1500 N | 3750 N | 240 Nm | 240 Nm | 1/2 N | 1/2 N | 1/20 Nm | 1/40 Nm |
| SI-2500-400 | 2500 N | 6250 N | 400 Nm | 400 Nm | 1/2 N | 1 N | 1/20 Nm | 1/20 Nm |
| | SENSING RANGES | RESOLUTION |
|
|
|
|
|
ｱ4500 lbf
|
|
|
ｱ11000 lbf
|
|
|
ｱ18000 lbf-in
|
|
|
ｱ18000 lbf-in
|
|
|
|
|
4.0x105 lb/in
|
|
|
6.9x105 lb/in
|
|
|
3.0x106 lbf-in/rad
|
|
|
4.7x106 lbf-in/rad
|
|
|
|
|
680 Hz
|
|
|
820 Hz
|
|
|
|
|
11 lb
|
|
|
6.1 in
|
|
|
2.41 in
|
|
| 9230-05-1076.pdf |
Non-IP-rated Theta Mounting Adapter Plate Drawing
|
| 9230-05-1104.pdf |
Theta Mux Transducer without Standard Mounting Adaptor
|
| 9230-05-1331.pdf |
Theta DAQ/NET Transducer with Mounting Adapter Plate
|
|
| 9105-NET-THETA |
THETA NET Transducer
|
| 9105-TIF-THETA |
Theta DAQ F/T Transducer
|
| 9105-T-THETA |
Theta F/T Transducer with standard tool and mounting plates
|
|
