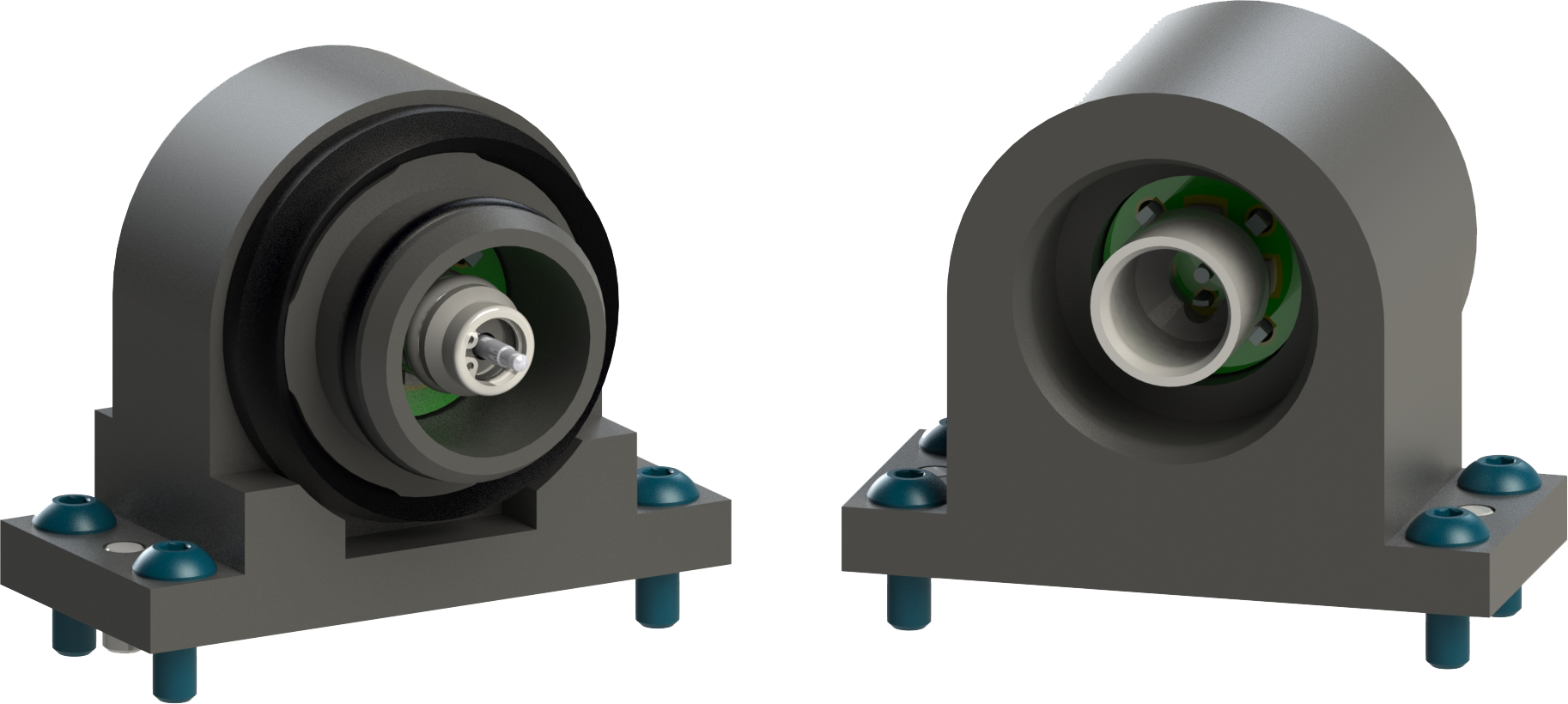

Triax Cable Module with Straight Bulkhead Jack Connector |
|
|
X7SC Master 0.31 lbs (0.14 kg)
X7SC Tool 0.36 lbs (0.16 kg) |
|
|
- Precious-metal-plated spring and contact pins
- Aluminum housings
- Teflon® dielectric
- Nitrile seals.
|
|
|
3 Amp max current through center spring probe. |
|
|
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
|
|
There are no Cables associated with this module.
|
|
| 9630-20-X7SC.pdf |
X7SC Module Drawing
|
|
| 9620-20-E-X7SC.pdf |
X7SC Electrical Module Manual
|
|
| 9120-XSC-T |
X7SC Protective Cover Assembly, Tool Side
|
| 9120-X7SC-M |
Triax Cable Master Module with Straight Bulkhead Jack Connector
|
| 9120-X7SC-T |
Triax Cable Tool Module with Straight Bulkhead Jack Connector
|
|
