Discrete Modules: VB5

> > > > > > VB5

Product Description

The Discrete Signal Integrated Valve module allows for communication and control of the Tool Changer.
Amphenol, MS-style connectors provided for customer interface.
An integrated single or double solenoid valve (sourcing types available on the Jxx valve adapter module) controls the Tool Changer locking mechanism.
Up to 10 signal pass-throughs available for customer use.
A flexible boot surrounds the pin block and seals the connection from moisture while coupled.
Patented Tool Stand Interlock (TSI) technology is provided through a connector on the Tool module. Integration of a mechanical limit switch will allow the integrated solenoid valve to uncouple the Tool Changer ONLY when the Tool is in the Stand.
NPN (sinking-type) Ready-to-Lock (R1 and R2), Lock, and Unlock sensor inputs supported.
Compact design package.

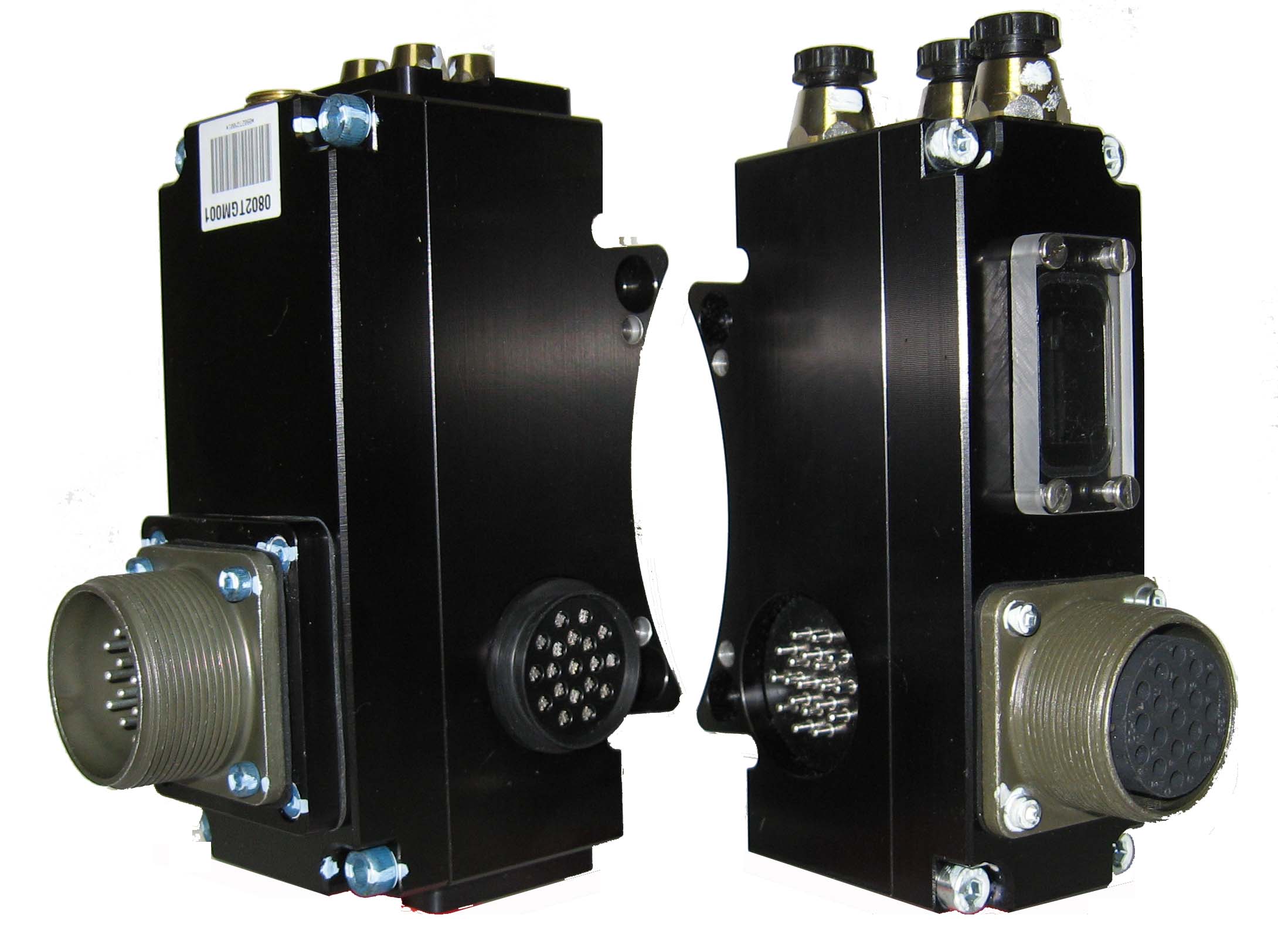

VB5 Modules (Master and Tool)

Part Number	Side	Notes	EDS File
9121-VB5-M	M	Discrete Module, 19-pin Amphenol, 19-pin Block, Tool Stand Interlock, 10 Pass-Throughs, NPN (sinking) Locked, Unlocked, and RTL sensors - Master side
9121-VB2-T	T	Discrete Module, 19 Pin Amphenol, 19 Pin Block, TSI on Tool, 10 Pass-Throughs - Tool side
