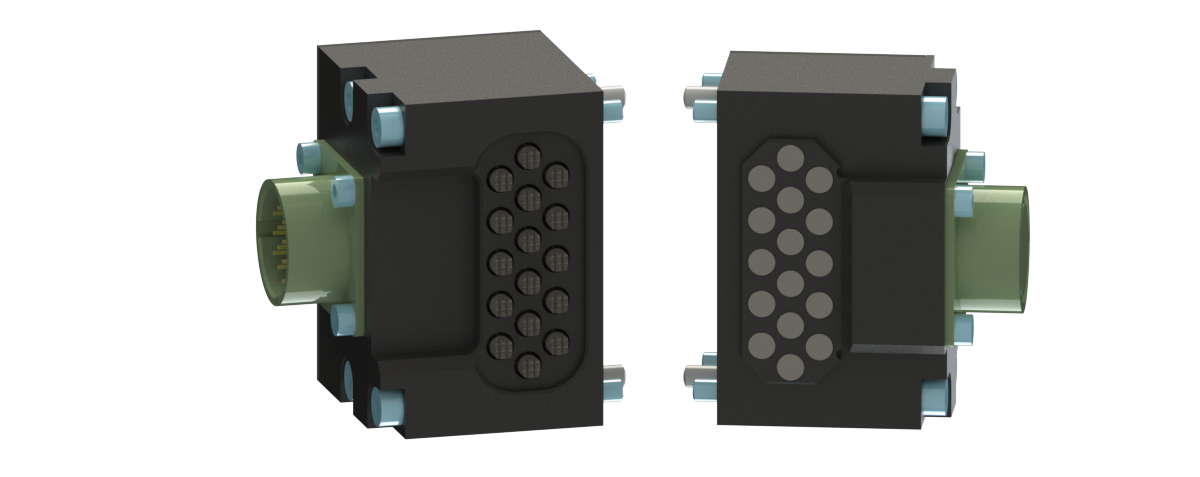

16-pin, 3 Amp/250VAC electrical module with miniature MS quick-disconnect connector |
|
|
9120-J16-M 0.30lbs (0.135kg)
9120-J16-T 0.22lbs (0.10 kg)
|
|
|
- Precious-metal-plated contact pins
- Delrin®.
|
|
|
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
|
|
There are no Cables associated with this module.
|
|
| 9630-20-J16.pdf |
J16 Electrical Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-J16-M |
16-pin, 3A/250VAC electrical module with MS miniature quick-disconnect connector, PTO2A-14-19, medium size connector - Master side
|
| 9120-J16-T |
16-pin, 3A/250VAC electrical module with MS miniature quick-disconnect connector, PTO2A-14-19, medium size connector - tool side
|
|
|
| G | Adds Gold Pins as an option.
(Add G at the end of the module number, before –M or –T for Master or Tool. No dashes between G and module number.) |
|
