| US-15-25 | 15 lbf | 30 lbf | 25 lbf-in | 25 lbf-in | 3/800 lbf | 1/160 lbf | 1/300 lbf-in | 1/400 lbf-in |
| US-30-50 | 30 lbf | 60 lbf | 50 lbf-in | 50 lbf-in | 3/400 lbf | 1/80 lbf | 1/150 lbf-in | 1/200 lbf-in |
| US-60-100 | 60 lbf | 120 lbf | 100 lbf-in | 100 lbf-in | 3/200 lbf | 1/40 lbf | 1/75 lbf-in | 1/100 lbf-in |
| | SENSING RANGES | RESOLUTION |
| | | | | | | | |
| SI-60-3 | 60 N | 120 N | 3 Nm | 3 Nm | 1/60 N | 7/240 N | 3/8000 Nm | 1/3200 Nm |
| SI-120-6 | 120 N | 240 N | 6 Nm | 6 Nm | 1/30 N | 7/120 N | 3/4000 Nm | 1/1600 Nm |
| SI-240-12 | 240 N | 480 N | 12 Nm | 12 Nm | 1/15 N | 7/60 N | 3/2000 Nm | 1/800 Nm |
| | SENSING RANGES | RESOLUTION |
|
|
|
|
|
ｱ670 lbf
|
|
|
ｱ1400 lbf
|
|
|
ｱ590 lbf-in
|
|
|
ｱ720 lbf-in
|
|
|
|
|
2.5x105 lb/in
|
|
|
3.3x105 lb/in
|
|
|
8.6x104 lbf-in/rad
|
|
|
1.8x105 lbf-in/rad
|
|
|
|
|
5800 Hz
|
|
|
4600 Hz
|
|
|
|
|
0.22 lb
|
|
|
1.77 in
|
|
|
0.69 in
|
|
| 9230-05-1440.pdf |
Mini45 Titanium Axial Exit Transducer
|
| 9230-05-1441.pdf |
Mini45 Titanium Right Angle E-Exit Transducer
|
|
| 9105-TW-MINI45TI-A-X.X |
Mini45 F/T transducer made of titanium and with titanium fasteners, with axial-exit cable
|
| 9105-TW-MINI45TI-ERA-X.X |

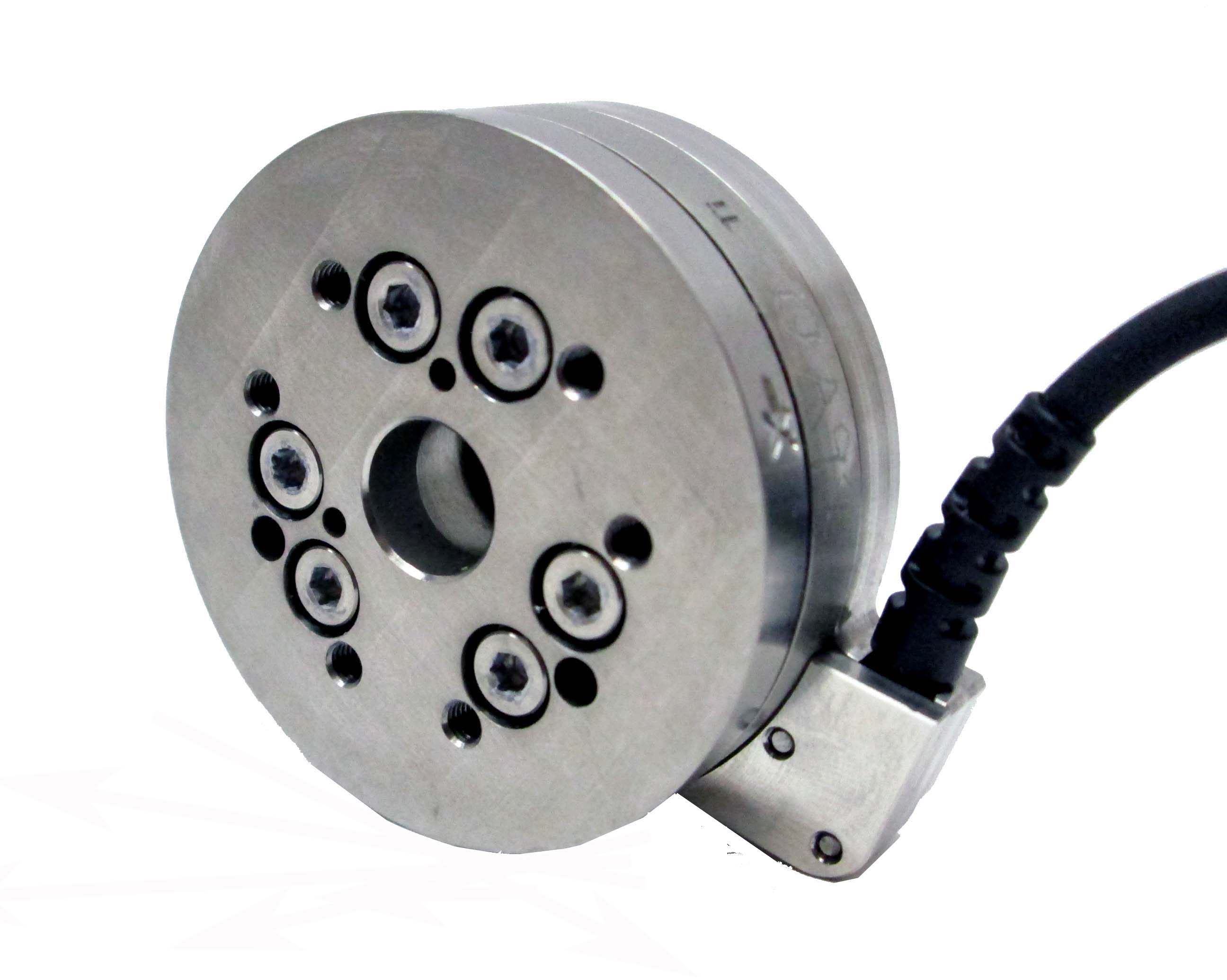

Mini45 F/T transducer made of titanium and with titanium fasteners, with R/A -E cable
|
| 9105-TW-MINI45Ti-R-X.X |
Mini45 F/T transducer made of titanium and with titanium fasteners, radial-exit cable
|
|
