Discrete Modules: VF2

> > > > > > SD2

Product Description

The Discrete Signal Integrated Valve module allows for communication and control of the Tool Changer.
Amphenol, MS-style connectors provided for customer interface.
An integrated single- or double-solenoid valve (available on the Jxx valve adapter module) controls the Tool Changer locking mechanism.
12 signal pass-throughs available for customer use.
A flexible boot surrounds the pin block and seals the connection from moisture while coupled.
Patented Tool Stand Interlock (TSI) technology is provided through a connector on the Tool module. Integration of a mechanical limit switch will allow the integrated solenoid valve to uncouple the tool changer ONLY when the Tool is in the Stand.
Tool-ID (0-9) capacity.
Ready-to-Lock (R1 and R2), Lock, and Unlock sensor inputs provided.
Supports Ford wiring preference.
Compact design package.

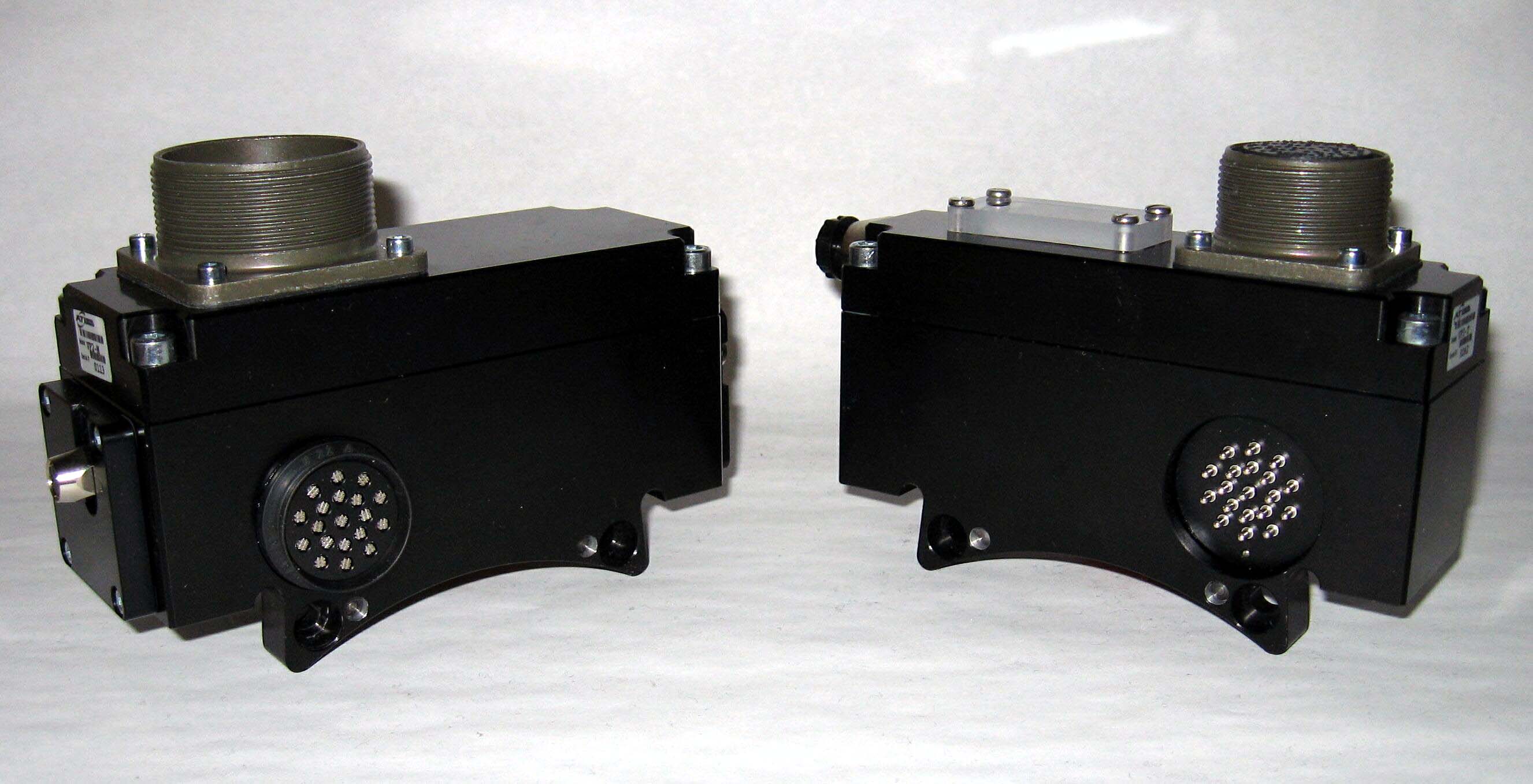

VF2 Master and VF3 Tool Modules

Part Number	Side	Notes	EDS File
9121-VF2-M	M	Discrete, 26-pin Amphenol, 19-pin Block, Supports L/U/R1/R2 Sensors and Integrated Valve (Mates with VF3-T) - Master side
9121-VF3-T	T	Discrete, 19-pin Amphenol, 19-pin Block, TSI on Tool, 12 Pass-throughs, 0-9 Tool-ID (Mates with VF2-M) - Tool side
