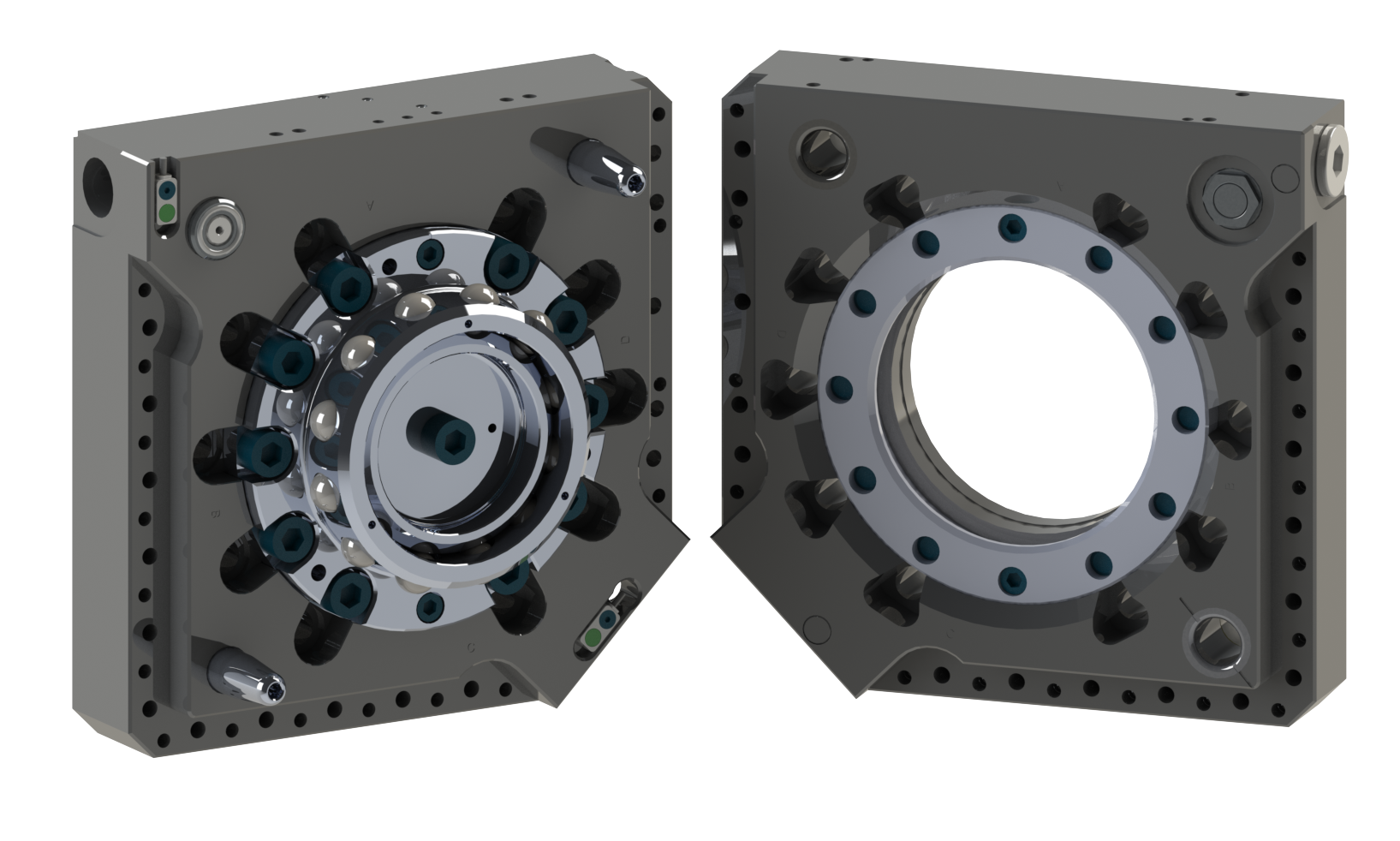

The QC-835 is a large, industrial tool changer intended for max payloads of 300kgs while maintaining an overall stack-height (Master and Tool) of 100mm. It mounts directly to ISO 125 and ISO 160 robot wrists. Three (3) flats are available for utility modules as well as flats dedicated for control module and tool stand mounting. The QC-835 has a vast selection of utility modules developed specifically for ATI's "Series 8" product line.

Features and Benefits

• Flexibility: The QC-835 is a modular, high-value solution for automated tooling exchange perfect for material handling and joining applications in the automotive sector.
• Ease of Integration and Maintenance: Engineered for simplicity, Series 8 is easy to integrate, operate, and maintain, ensuring a seamless addition to your existing systems.
• Direct mounting to ISO 9409-1-125-6/10-M10 and ISO 9409-1-160-10-M10/M12 robot wrists.
• Stack Height: The QC-835 maintains an overall stack height (Master and Tool) of 100mm.
• Integrated Lock/Unlock sensing to communicate status. No SIP required.
• Integrated pneumatic pass-through for reliable supply to downstream tooling and control of Tool Changer locking mechanism.
• No-Touch Locking™ overcomes 0.06 in (1.5 mm) pickup gaps for easy robot teaching.
• Mounting for optional utility modules. Three (3) flats available, one (1) flat will include Seires 8 and 9121 compatibility. One additional flat is dedicated to mount a control module and valve.
• Tool stand mounting flat. Separate flat reserved for mounting QC to Tool stand.
